1. AC1200 Dual-Band Wi-Fi – up to 1167Mbps combined
2. 2.4GHz: up to 300Mbps
3. 5GHz: up to 867Mbps
4. IEEE 802.11ac Wave 2 wireless technology
5. MU-MIMO for efficient simultaneous client connections
6. 2 × 5dBi high-gain omnidirectional antennas
7. Up to 200m coverage radius under suitable conditions
8. IP65 weather-resistant enclosure
9. 1 × Gigabit 10/100/1000Mbps Ethernet port
10. Supports IEEE 802.3af PoE + 24V/0.5A Passive PoE
11. VLAN tagging for SSIDs
12. Up to 256 clients, with 50 recommended
13. Suitable for wall and pole mounting
14. Up to 11.5W maximum power consumption

Technical Specifications

Specifications above are based primarily on Tenda's official product support page and datasheet.

Physical Measurements

Product Dimensions: 194.7 × 83 × 42.1 mm

Equivalent:

19.47 × 8.3 × 4.21 cm

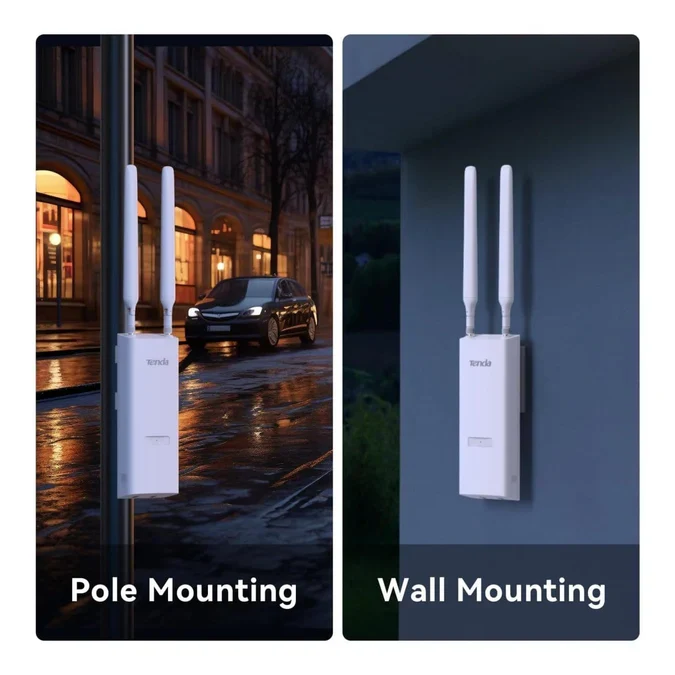

Tenda specifies wall and pole mounting for this unit.

Environmental Specifications

Long Description

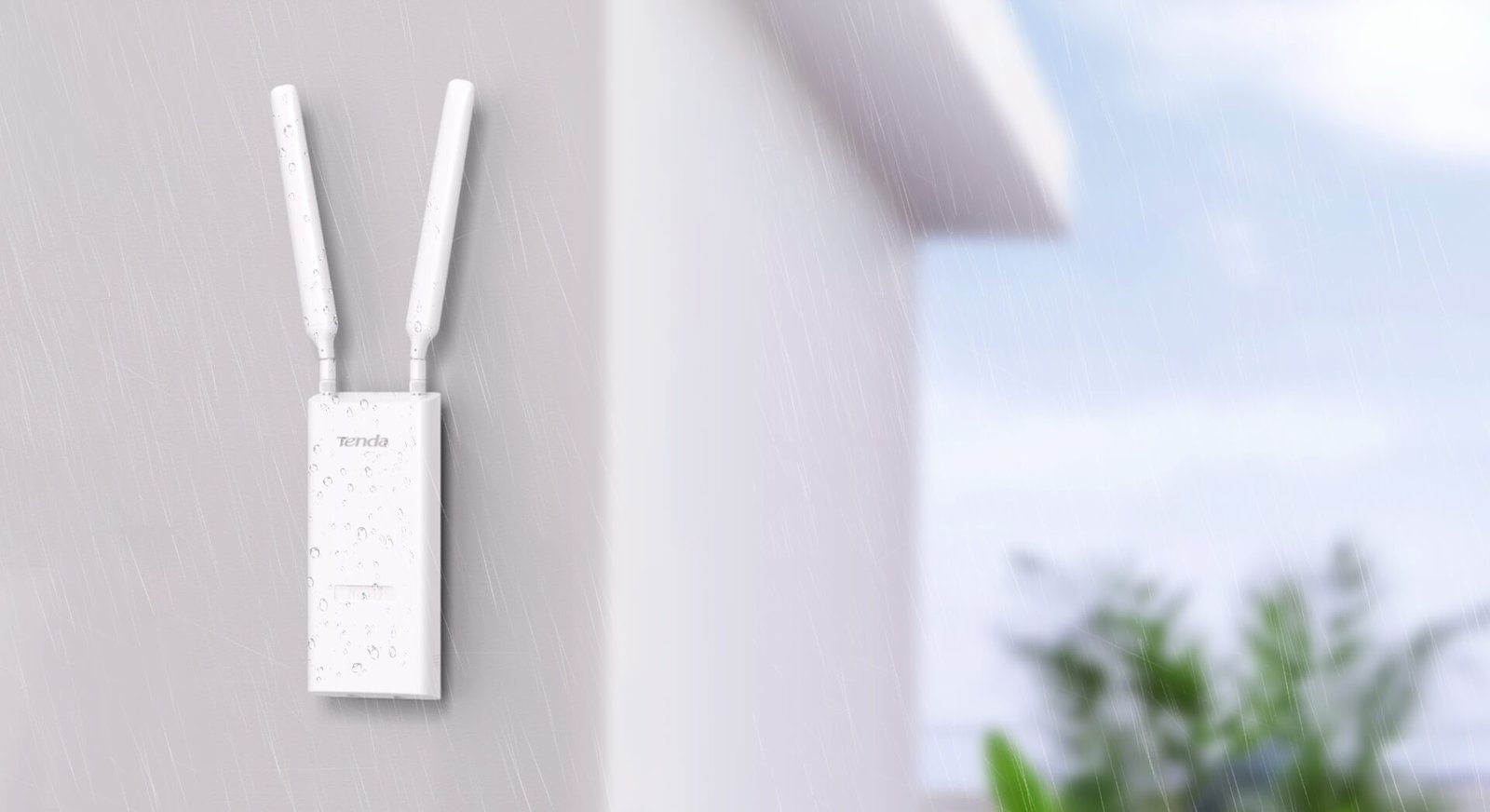

The Tenda TEI-OAP1200 AC1200 Indoor/Outdoor Wi-Fi Access Point is designed to provide reliable wireless connectivity for outdoor and demanding indoor environments. Its IP65-rated enclosure helps protect the access point against dust and water exposure, making it suitable for offices, warehouses, campuses, gardens, resorts, commercial premises and other outdoor Wi-Fi installations.

Operating simultaneously on the 2.4GHz and 5GHz bands, the OAP1200 delivers wireless speeds of up to 300Mbps at 2.4GHz and 867Mbps at 5GHz, for a combined maximum rate of approximately 1167Mbps. IEEE 802.11ac Wave 2 and MU-MIMO technology improve network efficiency when multiple compatible wireless clients are connected.

The access point incorporates two 5dBi high-gain omnidirectional antennas and Tenda specifies a maximum coverage radius of up to 200 metres, although actual range depends on installation, obstacles, interference and environmental conditions.

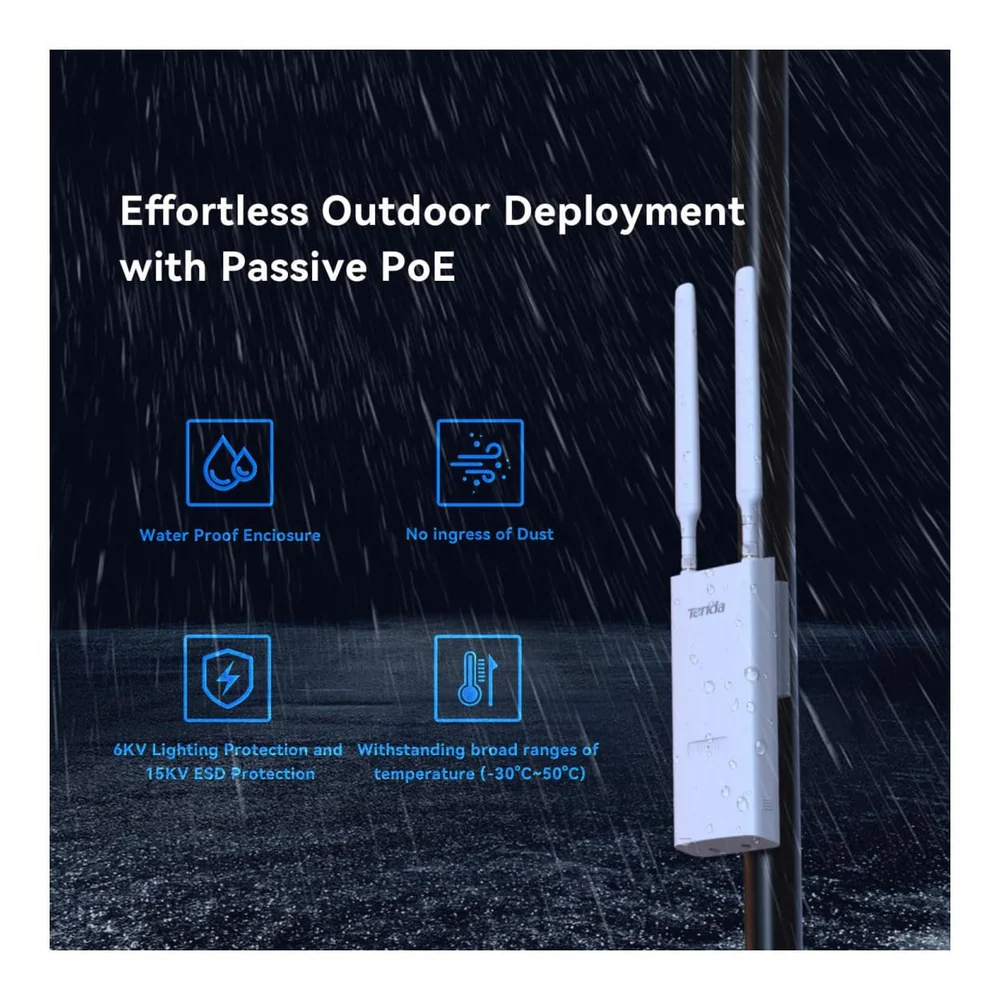

A Gigabit Ethernet PoE port simplifies deployment by allowing network data and power delivery through Ethernet. The unit supports both IEEE 802.3af PoE and 24V/0.5A passive PoE, making it suitable for flexible installations where conventional power outlets may not be readily available. VLAN tagging for SSIDs also makes the OAP1200 suitable for managed business wireless networks.

Ideal Applications

Suitable for outdoor Wi-Fi coverage, offices, warehouses, schools, campuses, hotels, resorts, restaurants, gardens, villas, CCTV installations and commercial premises where a weather-resistant dual-band access point is required.
