Tenda TEI-O1 2.4GHz 300Mbps 8dBi Outdoor CPE | IP65 Waterproof | Passive PoE | AP/Station/WISP | Point-to-Point Wireless Bridge
Tenda TEI-O1 is a 2.4GHz 300Mbps Outdoor CPE featuring an 8dBi dual-polarized directional antenna, IP65 weather-resistant housing, Passive PoE and AP/Station/WISP modes. Ideal for PtP/PtMP wireless networking, CCTV surveillance and outdoor network extension.
- Brand :Tenda
- Product SKU :TEI-O1
- Category :Networking Products, Switches, Patch panel
-
Availability :
4 In Stock
Base Price ₹1,906.78 + ₹343.22 GST (18%)
₹2,250.00
₹4,000.00
(incl. GST)
- Model NameTenda TEI-O1 2.4GHz 300Mbps 8dBi Outdoor CPE | IP65 Waterproof | Passive PoE | AP/Station/WISP | Point-to-Point Wireless Bridge
- BrandTenda
- CategoryNetworking Products, Switches, Patch panel
- AvailabilityIn Stock
Brand & Model
| FieldDetails | |
| Brand | Tenda |
| Model | O1 |
| SKU / Model Reference | TEI-O1 |
| Product Type | Outdoor Wireless CPE |
| Network Type | Wireless Outdoor Bridge / CPE |
| Frequency Band | 2.4 GHz |
| Wireless Standard | IEEE 802.11b/g/n |
| Maximum Wireless Rate | 300 Mbps |
| Antenna | Built-in directional antenna |
| Antenna Gain | 8 dBi |
| Antenna Polarization | Dual Polarization |
| Waterproof Rating | IP65 |
| Installation | Pole Mount / Wall Mount |
Key Features
- 300Mbps 2.4GHz wireless connectivity
- Powerful 8dBi directional antenna
- Designed for Point-to-Point (PtP) and Point-to-Multipoint (PtMP) wireless links
- Suitable for CCTV surveillance and private ISP/WISP networks
- IP65 weather-resistant enclosure for outdoor deployment
- Supports AP, Station and WISP modes
- Passive PoE simplifies outdoor installation
- Adjustable transmission power in 1dBm increments
- Supports 20/40MHz channel bandwidth
- Supports VLAN tagging, DHCP server and transparent bridge
- Wireless client and SSID isolation
- Remote web access and scheduled reboot
- Ping Watchdog and network diagnostic tools
Technical Specifications
| SpecificationDetails | |
| Frequency | 2.4 GHz |
| Wireless Standards | IEEE 802.11b/g/n |
| Maximum Wireless Speed | 300 Mbps |
| Antenna Gain | 8 dBi |
| Antenna Type | Directional, Dual Polarization |
| Antenna Beamwidth | Horizontal 60° / Vertical 60° |
| Ethernet Interface | 1 × 10/100 Mbps Ethernet Port |
| Operating Modes | AP / Station / WISP |
| Channel Bandwidth | 20 / 40 MHz |
| Transmission Power | Adjustable by 1 dBm |
| Waterproof Rating | IP65 |
| Reset Button | 1 × Reset |
| LEDs | PoE/LAN, Wi-Fi, LED1, LED2, LED3 |
| Power Consumption | 2.6 W |
| Power Supply | 9V 0.6A Passive PoE / 9V 0.6A DC |
| Passive PoE Voltage Range | 9–13.8V DC |
| Deployment | Pole Mount / Wall Mount |
| Dimensions | 193.5 × 80 × 67.5 mm |
| Operating Temperature | -30°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90%, non-condensing |
| Storage Humidity | 10%–90%, non-condensing |
| Certifications | FCC / CE / RoHS |
Wireless Security
Supports 64/128-bit WEP, WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WPA and WPA2, along with wireless access control, hidden SSID, client isolation and SSID isolation.
Management & Networking Features
The O1 supports DHCP Server, VLAN Tagging for SSID, Transparent Bridge, PPTP/L2TP VPN Pass-Through, DDNS, Ping Watchdog, Scheduled Reboot, Remote Web Access, System Logs, Configuration Backup/Restore, Firmware Upgrade, Ping, Traceroute and Signal Scan. It can also be managed using Tenda's PC-based CPE Assistant software.
Product Description
The Tenda TEI-O1 Outdoor CPE is a 2.4GHz wireless networking solution designed for outdoor Point-to-Point (PtP) and Point-to-Multipoint (PtMP) applications. Featuring a built-in 8dBi dual-polarized directional antenna and wireless speeds of up to 300Mbps, it is suitable for extending network connectivity between buildings, CCTV surveillance installations, private ISP networks and other outdoor wireless applications.
Its IP65-rated weather-resistant enclosure enables reliable outdoor deployment, while Passive PoE allows both power and network connectivity to be delivered conveniently to the installation point. The device supports AP, Station and WISP operating modes, along with VLAN, DHCP, transparent bridging, wireless security and remote management features.
Package Contents
According to Tenda, the package includes the O1 2.4GHz 300Mbps Outdoor CPE, power adapter, PoE injector and Quick Installation Guide.
You may also like these
CP PLUS
Base Price ₹2,711.86 + ₹488.13 GST (18%)
₹3,199.99
40 In Stock
Security Camera CP Plus CP-UNC-DA21L3C-LQ 2MP Full HD Dual Light IP Dome Camera with Built-in Mic, 30m IR & Warm Light, PoE, H.265, IP67
Base Price ₹2,711.86 + ₹488.13 GST (18%)
₹3,199.99
₹7,000.00
(incl. GST)
40 In Stock
Tenda
Base Price ₹2,400.00 + ₹432.00 GST (18%)
₹2,832.00
6 In Stock
Outdoor CPE Tenda O3 2.4GHz N150 Long Range Smart Manage Outdoor CPE | 12dBi, 5km+ | Point to Point Wireless Bridge | Fast Ethernet PoE Ports | AP/Station/WISP/P2MP/Repeater/Router | 6KV Lightning Protection, White
Base Price ₹2,400.00 + ₹432.00 GST (18%)
₹2,832.00
₹4,999.00
(incl. GST)
6 In Stock
TP-Link
Base Price ₹5,400.00 + ₹972.00 GST (18%)
₹6,372.00
4 In Stock

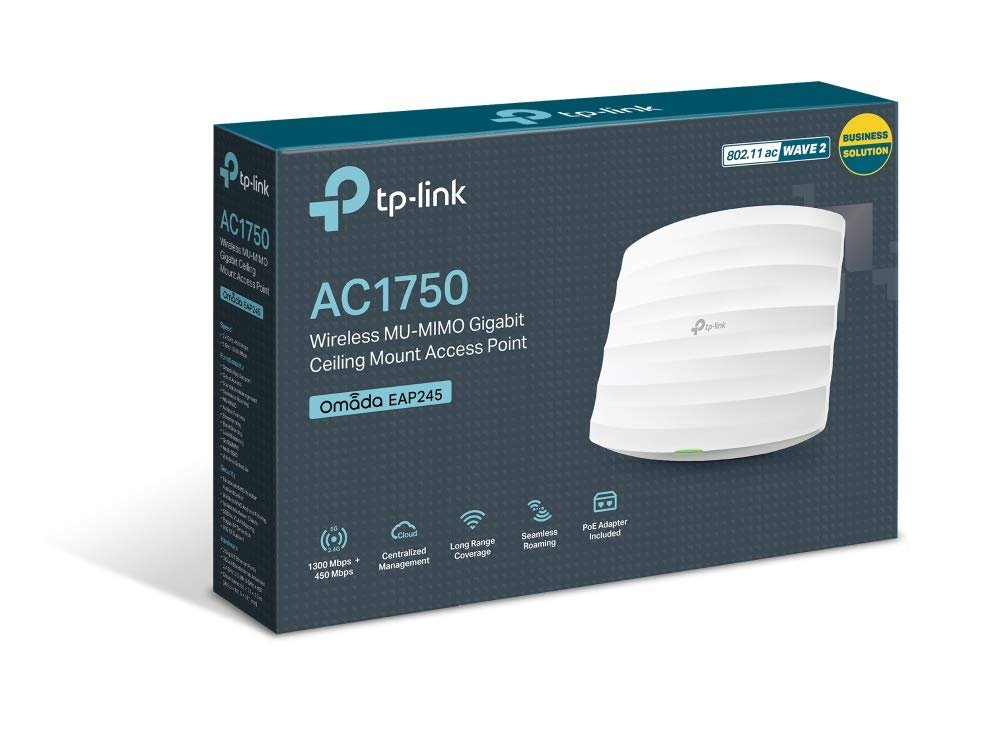

Net TP-Link Omada AC1750 Wireless Dual Band MU-MIMO Gigabit Ceiling Mount Access Point EAP245 | 1750Mbps, Seamless Roaming, Beamforming, Poe Powered, Band Steering, Airtime Fairness, White
