Basic Product Information

Hikvision positions this model as a 2MP Dual Light Audio Indoor Fixed Turret Camera, combining IR and visible white supplementary lighting with built-in audio.

Key Features

1. 2MP Full HD 1080p video resolution
2. Smart Dual Light technology with IR + White Light
3. Up to 20m IR night vision
4. Up to 20m white-light illumination
5. Built-in microphone for audio surveillance
6. Audio transmission over coaxial cable
7. Choice of 2.8mm or 3.6mm fixed lens
8. Four switchable video signals: TVI / AHD / CVI / CVBS
9. Digital WDR for improved visibility in difficult lighting
10. BLC and HLC image enhancement
11. Smart IR
12. ICR day/night switching
13. Compact turret design

Camera Specifications

The current official datasheet specifies 0.01 Lux @ F1.6 (AGC ON) and 0 Lux with IR.

Lens & Field of View

2.8mm Lens

1. Horizontal FOV: 101°
2. Vertical FOV: 56°
3. Diagonal FOV: 118°

3.6mm Lens

1. Horizontal FOV: 78°
2. Vertical FOV: 42°
3. Diagonal FOV: 92°

For a typical indoor installation where wider coverage is preferred, the 2.8mm variant is generally the more suitable choice.

Video Frame Rate

TVI: 1080p @ 25/30 fps

AHD: 1080p @ 25/30 fps

CVI: 1080p @ 25/30 fps

CVBS: PAL / NTSC

Audio

The camera includes 1 built-in microphone with a specified pickup radius of up to 5 metres. Audio can be transmitted over the coaxial connection, simplifying CCTV installations where compatible DVR equipment is used.

Physical Specifications

Long Product Description

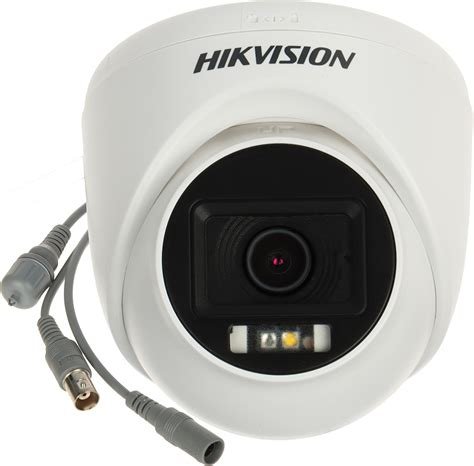

The Hikvision DS-2CE76D0T-LPFS 2MP Dual Light Audio Fixed Turret Camera provides Full HD 1920×1080 surveillance for homes, offices, retail stores and other indoor security applications.

Its Smart Dual Light system provides both infrared and white supplementary illumination with a range of up to 20 metres. The camera also incorporates a built-in microphone and supports audio transmission over coaxial cable, allowing video and audio surveillance through a simplified cabling setup when paired with compatible equipment.

The DS-2CE76D0T-LPFS supports TVI, AHD, CVI and CVBS switchable video signals for flexible integration into different analog HD surveillance systems. Image-processing features including Digital WDR, BLC, HLC, Smart IR, automatic/manual white balance and AGC help maintain usable image quality across varying lighting conditions.

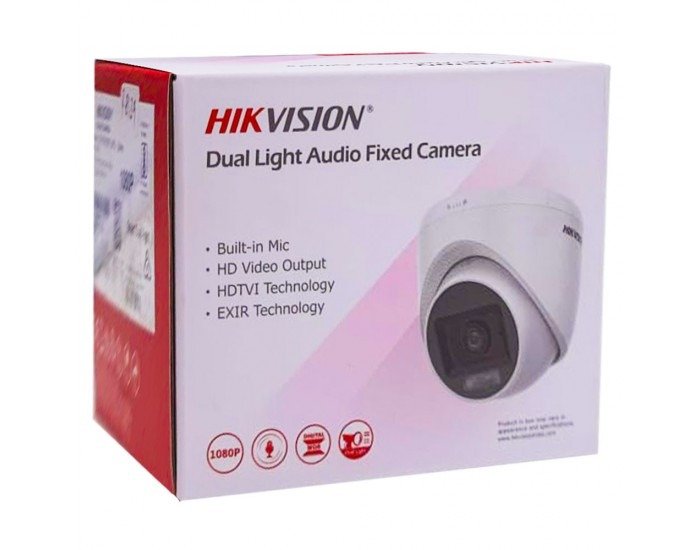

What's in the Box

Typically:

1. 1 × Hikvision DS-2CE76D0T-LPFS Camera
2. Installation / mounting accessories
3. Documentation

Note: Package contents can vary by market/distributor, so this should be verified against your stock before publishing.
