Cable CP Plus CCTV Co-Axial 3+1 CP-ECC-180RS | Length: 180mtr. Solid Annealed Bare Copper Conductor, PVC Insulated, White
CP PLUS CP-ECC-180RS is a 180-metre 3+1 CCTV cable featuring copper conductors, shielded video core, PVC insulation and 3 power cores. Ideal for reliable video and power connectivity in CCTV surveillance installations.
- Brand :CP PLUS
- Product SKU :CP-ECC-180RS
- Category :CCTV cables
-
Availability :
108 In Stock
Base Price ₹2,754.24 + ₹495.76 GST (18%)
₹3,250.00
₹6,400.00
(incl. GST)
- Model NameCable CP Plus CCTV Co-Axial 3+1 CP-ECC-180RS | Length: 180mtr. Solid Annealed Bare Copper Conductor, PVC Insulated, White
- BrandCP PLUS
- CategoryCCTV cables
- AvailabilityIn Stock
Description

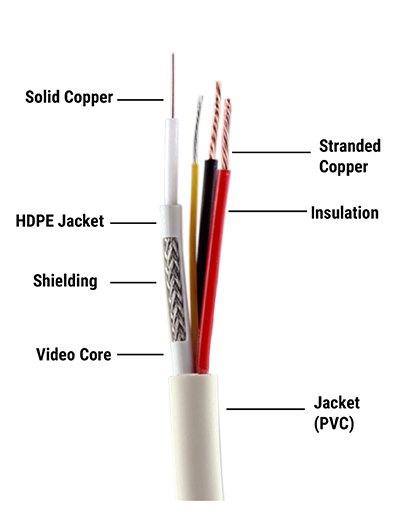

- The CP PLUS CP-ECC-180RS is a 180-metre 3+1 CCTV cable designed for professional and residential surveillance installations. It combines a video coaxial core with three power cores, allowing convenient camera video and power connectivity through a single cable assembly. The cable uses annealed bare copper conductors, HDPE insulation for the video core, Al-Mylar foil and alloy braiding for shielding, and a PVC outer sheath for protection
Brand: CP PLUS
Model: CP-ECC-180RS
Product Type: 3+1 CCTV Cable / Coaxial Cable
Cable Length: 180 Metres
Cable Type: 3+1 Standard CCTV Cable
Colour: White Outer Jacket
Conductor: Stranded Annealed Bare Copper
Video Core: Solid Annealed Bare Copper
Video Core Diameter: 0.51 ± 0.005 mm
Nominal Conductor Diameter: 1.35 ± 0.1 mm
Power Core: 14/0.10 ± 0.010 mm
Number of Cores: 3 Power + 1 Video
Power Core Colours: Red, Grey & Yellow
Video Core Insulation: HDPE
Video Core OD: 2.50 ± 0.20 mm
Shielding: Al-Mylar Foil + Alloy Braiding
Outer Sheath: PVC
Overall Cable Diameter: 5.60 ± 0.30 mm
Outer Jacket Thickness: 0.65 ± 0.1 mm
Sequential Marking: Every Meter
Application: CCTV Camera Installation
Market: India
CP PLUS confirms the CP-ECC-180RS as a 3+1 CCTV Standard Cable featuring a stranded annealed bare copper conductor, shielding, PVC insulation and a 180 m cable length. CP PLUS
Key Features
- 180 Metre Standard CCTV Cable
- 3+1 Configuration — Video + Power
- Copper Conductor for reliable signal and power transmission
- Solid Copper Video Core
- Al-Mylar Foil & Alloy Braiding Shielding
- PVC Insulated Outer Jacket
- Sequential Meter Marking for easy measurement
- Suitable for CCTV surveillance installations
- Designed for the Indian market
Specifications
| SpecificationDetails | |
| Brand | CP PLUS |
| Model | CP-ECC-180RS |
| Cable Type | 3+1 CCTV Cable |
| Length | 180 Metres |
| Conductor | Stranded Annealed Bare Copper |
| Video Conductor | Solid Annealed Bare Copper |
| No. of Cores | 3 Power + 1 Video |
| Power Core Colours | Red, Grey, Yellow |
| Video Core Insulation | HDPE |
| Shielding | Al-Mylar + Alloy Braiding |
| Outer Jacket | PVC |
| Outer Diameter | 5.60 ± 0.30 mm |
| Video Core OD | 2.50 ± 0.20 mm |
| Meter Marking | Every Meter |
| Application | CCTV Surveillance |
